Details

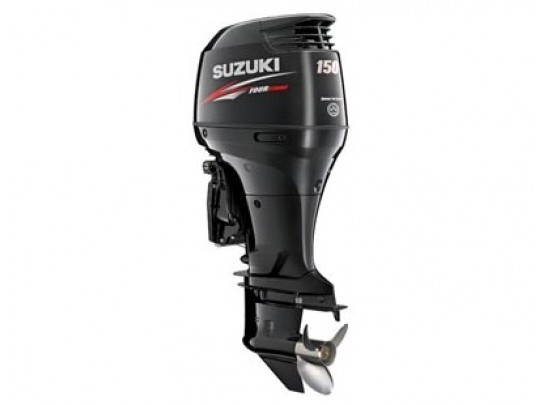

F150 Specifications
| Model Name: | DF150 |
|---|---|
| Configuration: | T, TZ |
| Horsepower: | 150 |
| Shaft Length (Inches): | L (20), X (25) |
| Weight (Lbs): | L (474), X (485) |
| Cylinders: | In-line4 |
| Valves Per Cylinder: | DOHC 4 Valves Per Cyl. |
| Valve Train Drive: | Self adjusting oil bathed chain |
| Displacement: | 174.9 cu. in. (2867 cc) |
| Bore and Stroke (Inches/mm): | 3.81 x 3.81 in. (97 x 97 mm) |
| Operating Range (RPM): | 5000-6000 |
| Induction System: | EFI Multi Stage Induction |
| Starting System: | Electric Start w/Suzuki EFI |
| Lubrication: | Wet sump |
| Oil Tank Capacity: | 8.0 qt. (7.6 lit.) |
| Ignition: | Solid State Electronic |
| Alternator: | 12V 44A |
| Trim Type: | Power Trim and Tilt |
| Gear Ratio: | 2.50:1 |
| CARB Emissions Rating: | 3-Star Ultra-Low |
| Standard Propeller (Blades x Dia. x Pitches (Ins.)): | Optional - See Dealer |
| Range of Avail. Optional Propeller Pitches: | 17 - 27 |
| Counter Rotation: | Available |
| Steering: | Remote |
Additional Information
| Specification | Features Offset Driveshaft Tilt Limit Switch Tuned Intake System 16 Valve DOHC (Dual Overhead Cam) Design EZ Oil Drain Plug Water-Cooled Fuel Rail Dual Flush Ports On-Board Computer Diagnostics Unique Low Gear Ratio Cool Air Intake System Big B |
|---|
